BMW LED Door Projectors — M Logo or BMW Roundel | Plug & Play, No Coding Required

BMW LED Door Projectors — M Logo or BMW Roundel | Plug & Play, No Coding Required

$35.00 USD
$35.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size
Design

Plug & Play · No Coding Required · E, F & G Series · M Logo or BMW Roundel

The factory M3/M4/M5 door effect — without the dealer visit.

Replace your BMW's plain courtesy light with an illuminated logo projection every time you open the door. No coding, no dashboard errors, no tools beyond a flathead screwdriver. On in 5 minutes.

True plug & play — no coding, no app, no OBD2 adapter Direct replacement for your factory courtesy light. Unplug the original, plug in the projector, snap it back in. That's it.
Zero dashboard errors — built-in CANBUS resistors The integrated CANBUS system makes your BMW recognize the new LED as a standard bulb. No warning lights, no fault codes.
Sharp projection — visible even in daylight Precision glass lens with high-output LEDs. IP65 rated — water and cold resistant. Projects a crisp, clean logo on the ground every time you open a door.
What's included
2 LED door projectors (left + right pair) M Logo or BMW Roundel — choose at checkout · 50 mm or 68 mm · 2 units total — covers both front doors
Pre-installed plug & play connectors Plugs directly into the factory socket · No splicing · No wiring modifications
Free shipping
14-day returns
CANBUS ready
Real support

BMWs come with two different courtesy light sizes depending on model and year. Getting this right is critical — the wrong size won't fit your door.

Quickest way to check: pop out one of your current courtesy lights with a flathead screwdriver (lever gently from the bottom — it pulls straight toward you) and measure the lens diameter.

  • Measures 5 cm → you need the 50 mm version
  • Measures 6.8 cm → you need the 68 mm version

Quick reference by model:

Series / Model Typical size Notes
1 Series F20/F21 50 mm Confirm courtesy light is factory fitted
2 Series F22/F45/F46 50 mm —
3 Series F30/F31/G20/G21 50 mm —
4 Series F32/F36/G22 50 mm —
5 Series F10/F11/G30/G31 68 mm —
6 Series F12/F13/G32 68 mm —
7 Series F01/G11/G12 68 mm —
X1 F48 · X2 F39 50 mm —
X3 F25/G01 · X4 F26/G02 68 mm —
X5 F15/G05 · X6 F16/G06 68 mm —
Still not sure? Send us your VIN or plate and we'll confirm the right size before you order.

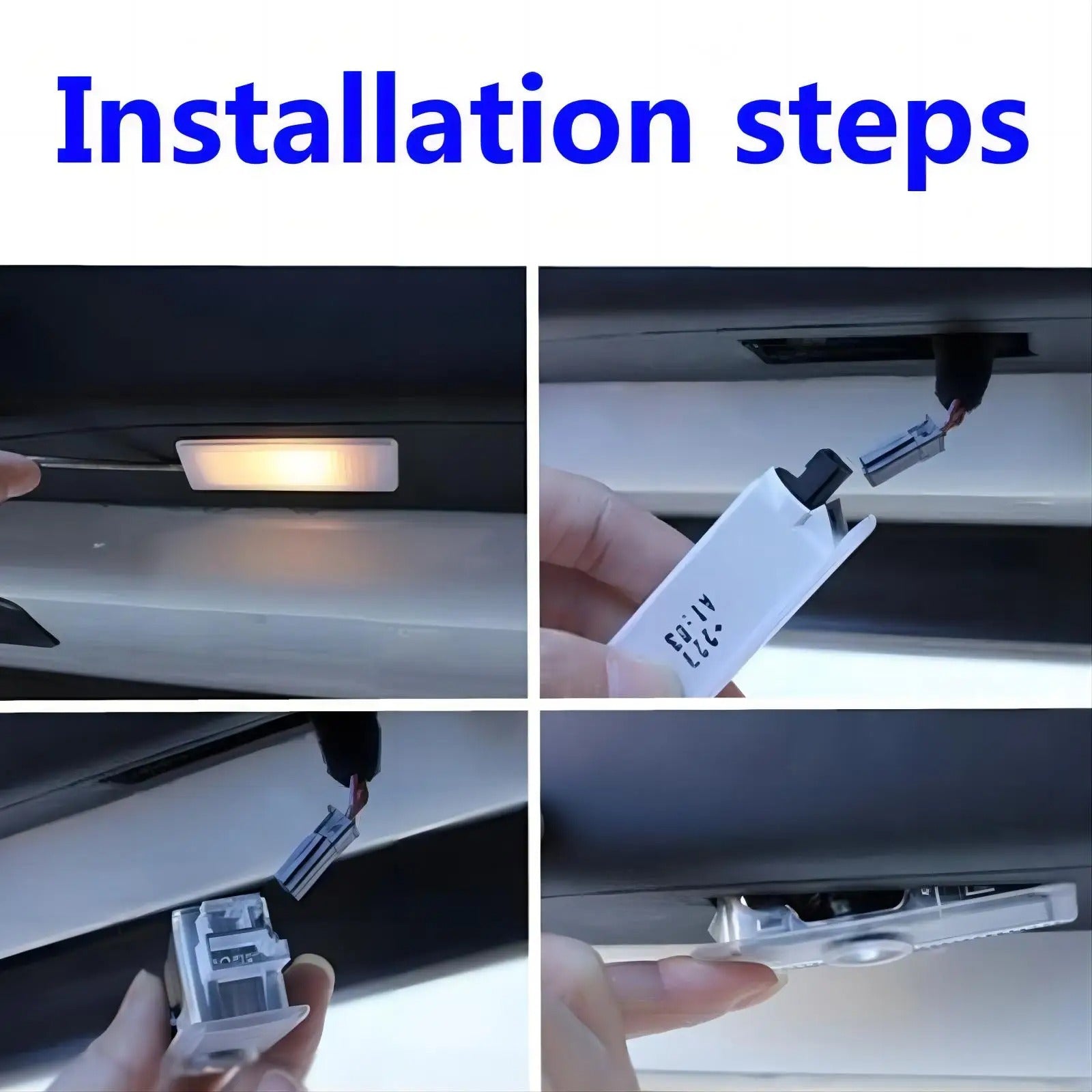

All you need is a flathead screwdriver and a cloth to protect the panel.

1
Open the driver's door and locate the courtesy light on the lower section of the door panel.
2
Wrap your screwdriver in the cloth and gently lever the light out from the bottom edge.
3
The light pops toward you — disconnect the electrical connector.
4
Connect the Codedrive LED projector to the same connector (plug & play — only fits one way).
5
Press the projector gently into the housing until it clicks into place.
6
Repeat on the other door. Done.
Prerequisite: your BMW must have factory-fitted courtesy lights (the white lights that illuminate the ground when you open the door). If your car doesn't have them from the factory, there's no connector to plug into.

Compatible with most BMWs with factory courtesy lights:

BMW E Series
BMW F Series
BMW G Series
1 Series 2 Series 3 Series 4 Series 5 Series 6 Series 7 Series X1 · X2 X3 · X4 X5 · X6
2024+ models with exterior rocker panel lighting are not compatible. Not sure about your spec? Message us before ordering.
  • Available in 50 mm and 68 mm — select at checkout

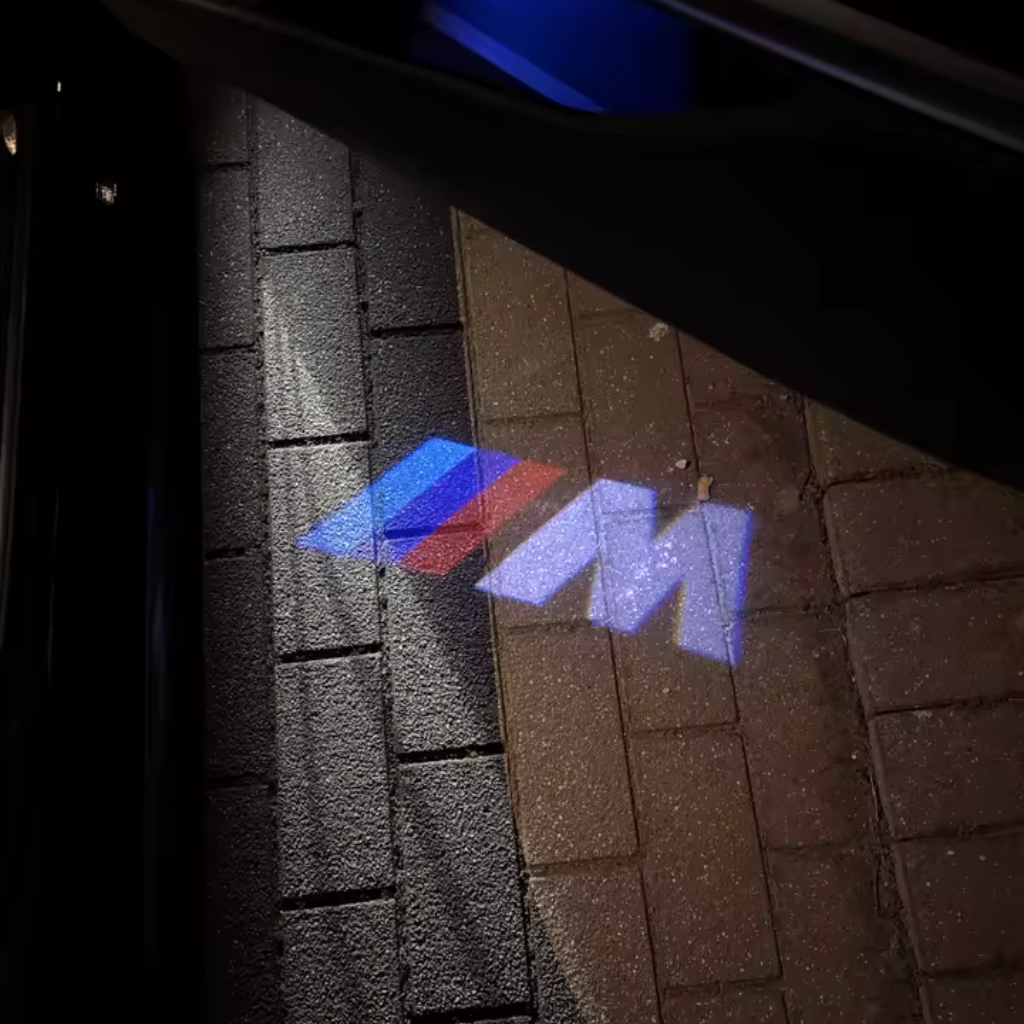

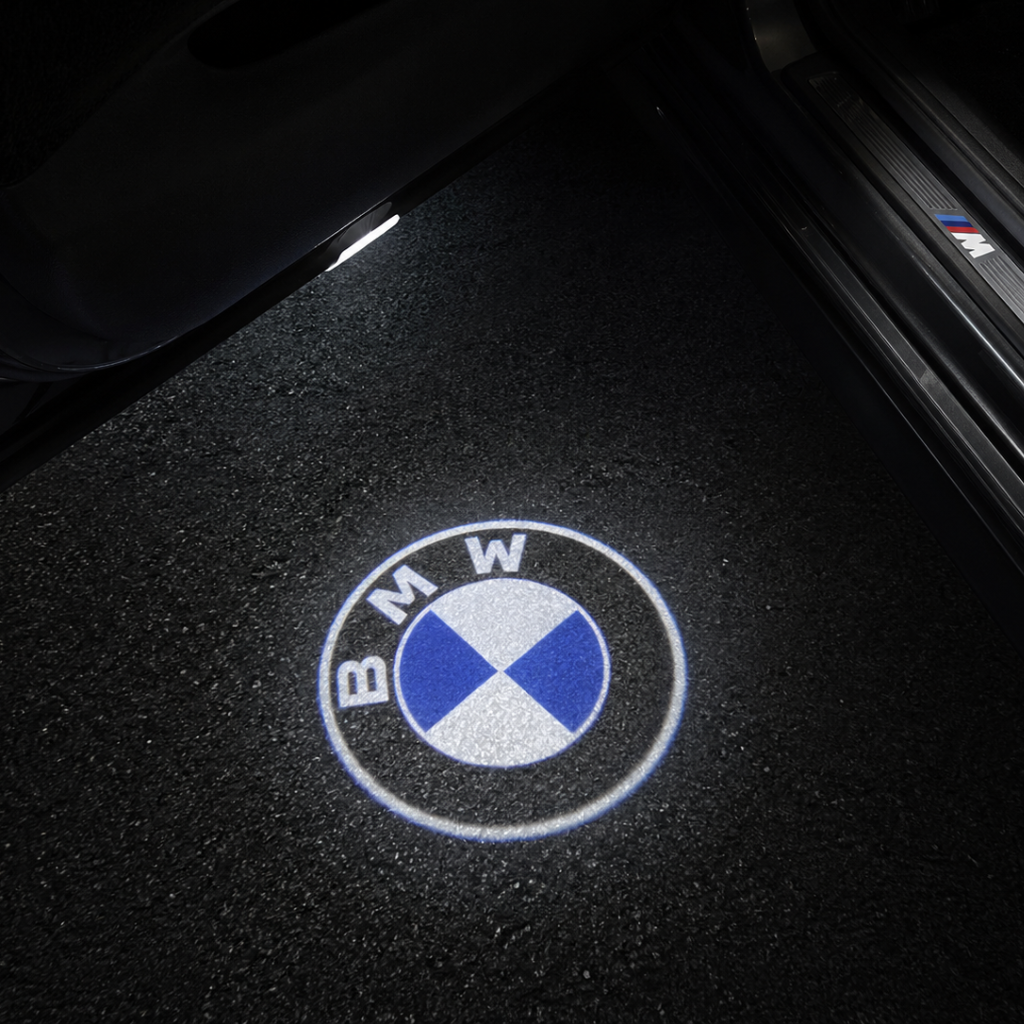

  • M Logo (three-stripe sport emblem) or BMW Roundel (classic blue & white circle)
  • Precision glass lens · High-output LEDs
  • Integrated CANBUS resistors — no dashboard errors
  • Water and cold resistant · IP65 rated
  • Pre-installed plug & play connectors · No wiring modifications
  • Pack of 2 units (left + right)
  • Free shipping on all orders, with tracking
  • Ships from our warehouse
  • Estimated delivery: 7–10 business days worldwide
  • Tracking number sent by email once shipped
14-day no-questions return policy. If the projectors arrive faulty or don't fit your BMW, we'll replace them or refund you — no hassle.

To start a return, contact us through the store or by email. We handle everything within 48 hours.

Do I need a BimmerCode adapter or OBD2 tool to install these?

No. The projectors are completely plug & play. No coding required, no app, no adapter. If you also want to unlock hidden features on your BMW, that's a separate product — our Bluetooth OBD2 adapter.

Will it trigger a warning light on the dashboard?

No. Each projector has built-in CANBUS resistors so your BMW treats it exactly like a factory bulb. No fault codes, no warnings.

M Logo or BMW Roundel — what's the difference?

The M Logo projects the three-stripe sport emblem. The BMW Roundel projects the classic blue and white circle. Pick the one that matches your style — you choose it in the variant selector before adding to cart.

Does it work on all BMWs?

On most E, F, and G Series models that have factory-fitted courtesy lights. 2024+ models with exterior rocker panel lighting are not compatible. If you're unsure whether your spec has the factory lights, message us before ordering.

How many units are in the pack?

Two — one for each front door (left + right). The pack covers both doors.

BMW LED Door Projectors by Codedrive · Integrated CANBUS · E, F & G Series · 50 mm & 68 mm · Pack of 2
